'20/01/12更新:コードを見易くするため、グラフ化の箇所は関数化して分けた。
本記事では、Pythonの多目的最適化のフレームワークのひとつ「Platypus(カモノハシ)」を利用して、その中に含まれるGAアルゴリズムのひとつ「NSGAII(Non dominated Sorting Genetic Algorithms II)」の使用例である。
使用した分析データは、sklearnに含まれている「生理学的特徴と運動能力の関係」である。Python scikit-learn付属の多目的用のデータ「Linnerud dataset」をcsvファイル化する - HK29’s blog
目的関数3つの回帰モデル(回帰式)を各々作成する。作成例は右記リンク先を参照→Python scikit-learnによる交互作用の項を考慮した重回帰分析 - HK29’s blog

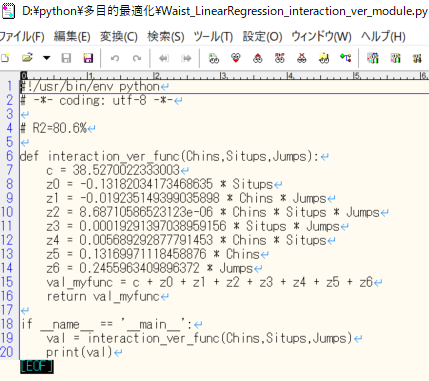

その結果、下図のような線形重回帰分析の回帰式を自作モジュールとして作成する。

本記事のコードを実行すると下図の3つのファイルを出力する。

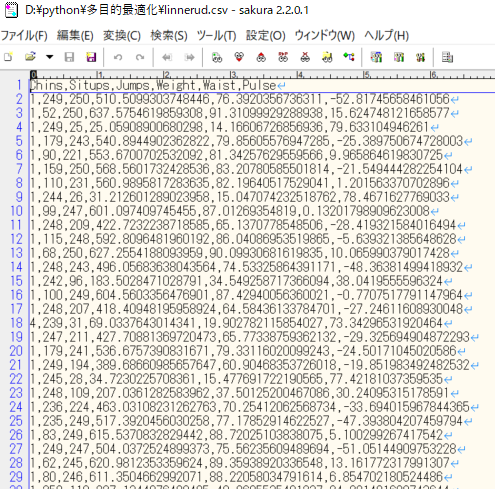

1. 各世代で得られた目的値を説明変数と共にcsvファイルに出力する
ねらいの目的値に対して、得られた設計値を知ることが出来る。

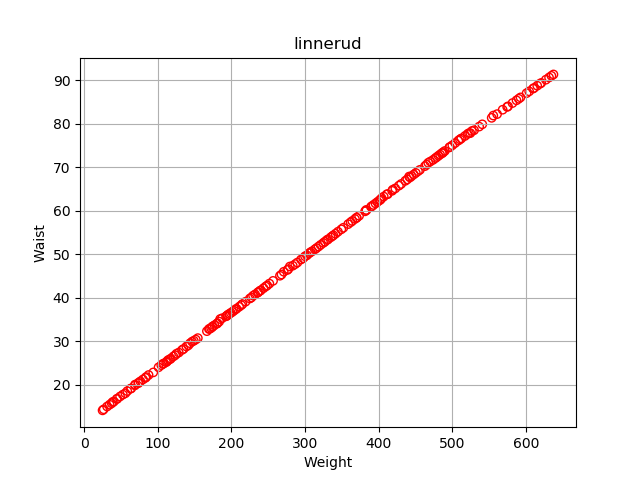

2. 複数の目的関数を横軸,縦軸にしてパレート解として可視化
下図は使用したデータが例としてよくなかったが、本来、トレードオフの関係にあるデータを分析すればパレート解まで確認できる。目的関数が3つ以上の場合で、それぞれ可視化したい場合はそれ用に編集する。

3. 全データを散布図にして可視化
一応、上記2がなくても下図で全ての相関関係を視覚的に確認できる。

■本プログラム
import sys
sys.path.append(".")
import Weight_LinearRegression_interaction_ver_module as myfunc1
import Waist_LinearRegression_interaction_ver_module as myfunc2
import Pulse_LinearRegression_interaction_ver_module as myfunc3
from platypus import NSGAII, Problem, Real, Integer
import pandas as pd
import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
import seaborn as sns
def my_function_from_module(vars):
Chins = vars[0]
Situps = vars[1]
Jumps = vars[2]
objective_function1 = myfunc1.interaction_ver_func(Chins, Situps, Jumps)
objective_function2 = myfunc2.interaction_ver_func(Chins, Situps, Jumps)
objective_function3 = myfunc3.interaction_ver_func(Chins, Situps, Jumps)
return [objective_function1,
objective_function2,
objective_function3]
def plot_scatter(algorithm, out_file_name, my_color):
my_file_name = out_file_name + '_NSGAII'
x_list = [s.objectives[0] for s in algorithm.result]
y_list = [s.objectives[1] for s in algorithm.result]
fig = plt.figure(figsize=(8,8))
ax = fig.add_subplot(1,1,1)
ax.set_title('Multi-objective optimization', fontsize=14)
ax.set_xlabel(my_xlabel, fontsize=16)
ax.set_ylabel(my_ylabel, fontsize=16)
if my_xrange:
ax.set_xlim([my_xrange[0], my_xrange[1]])
if my_yrange:
ax.set_ylim([my_yrange[0], my_yrange[1]])
ax.scatter(x_list, y_list, facecolors='none', edgecolors=my_color,
label="NSGAII" + '\n Pareto frontier')
ax.legend(loc='best', fontsize=14)
ax.grid(which='both')
ax.tick_params(labelsize=14)
plt.tight_layout()
plt.savefig(my_file_name + '_Pareto_frontier.png')
plt.close()
def plot_matrix_scatter(label, DF, my_sequential_colormap):
print("plot_matrix_scatter ...")
sns.set(style="ticks", font_scale=1.2, palette=my_sequential_colormap, color_codes=True)
g = sns.pairplot(DF, diag_kind="hist")
g.fig.suptitle(label)
g.fig.subplots_adjust(top=0.9)
plt.grid(True)
plt.savefig(label + "_Matrix_scatter.png")
plt.close()
def create_Summary_data(Chins,
Situps,
Jumps,
algorithm, my_sequential_colormap):
my_file_name = out_file_name + '_NSGAII'
column_name_list = ['Chins', 'Situps', 'Jumps',
'Weight', 'Waist', 'Pulse']
column_name_list = ','.join(column_name_list)
row_list=[]
with open(my_file_name + '.csv', 'w') as f:
f.writelines(column_name_list)
f.write('\n')
for i in range(len(algorithm.result)):
row_list.append(Chins.decode(algorithm.result[i].variables[0]))
row_list.append(Situps.decode(algorithm.result[i].variables[1]))
row_list.append(Jumps.decode(algorithm.result[i].variables[2]))
row_list.extend(algorithm.result[i].objectives[:])
print('NSGAII epoch' +str(i+1) + ' -> ' + str(row_list))
row_list_str = ','.join(map(str, row_list))
f.writelines(row_list_str)
f.write('\n')
row_list=[]
df = pd.read_csv(my_file_name + '.csv')
plot_matrix_scatter(my_file_name, df, my_sequential_colormap)
def main(my_color, my_sequential_colormap):
problem = Problem(3, 3)
problem.directions[:] = [Problem.MAXIMIZE,
Problem.MINIMIZE,
Problem.MINIMIZE]
Chins = Integer(1, 17)
Situps = Integer(50, 250)
Jumps = Integer(25, 250)
problem.types[:] = [Chins,
Situps,
Jumps]
problem.function = my_function_from_module
print(problem.function)
algorithm = NSGAII(problem, 200)
algorithm.run(10000)
print(algorithm)
plot_scatter(algorithm, out_file_name, my_color)
create_Summary_data(Chins,
Situps,
Jumps,
algorithm, my_sequential_colormap)
if __name__ == '__main__':
out_file_name = 'linnerud'
my_xlabel = 'xlabel'
my_xscale = 'linear'
my_xrange = ()
my_ylabel = 'ylabel'
my_yscale = 'linear'
my_yrange = (0, 100)
my_colors = ["r", "g", "b", "c", "m", "y", "k", "w"]
my_sequential_colormaps = ["spring", "summer", "autumn", "winter", 'bone',
"copper", "plasma", "magma", "cividis", "hsv"]
main(my_colors[0], my_sequential_colormaps[0])
print('finished')
●参考リンク
github.com
●関連リンク
hk29.hatenablog.jp
hk29.hatenablog.jp
以上
